RD450 Desiccant Air Dryer

Model RD450

RD1000 Desiccant Air Dryer

Model RD1000

RD1600 Desiccant Air Dryer

Model RD1600

RD3000 Desiccant Air Dryer

Model RD3000

M1616AC4 RF Desiccant Air Dryer

Model M1616AC4 RF

Romar Manufactured Desiccant Air Dryers



Romar Air Dryers Made With Pride in the U.S.A.

Portable Industry and “Rental Fleet” Units Shipped Nationwide

Get a Quote from Romar Supply

Made With Pride in the U.S.A.
Romar is proud to manufacture all of its air dryers in Texas. Using our own modified, improved design, Romar desiccant air dryers are in high demand for equipment companies who need rental fleet units, as well as for companies in industries who need units for their own use. We offer our customers a variety of reasonably priced, high quality industrial air dryers with a proven history of performance.  Readily available replacement components and maintenance items are available through Romar Supply locations.

Shipped Where You Need Them
Skid mounted and manufactured according to dimensions to ship domestically on any truck or internationally in ISO (conex) containers, they can be sent anywhere, nationwide or worldwide!

Consider the quality and durability of American made products when choosing a manufacturer. Choose Romar Air Dryers!

Superior Design

The Romar RD Series ranges from 450 CFM to 3000 CFM, and has optional fully integrated aftercoolers and filtration to provide pressure dew points of -40°F to -100°F and meet most common air compressor ratings.

Our heavy-duty, yet transportable desiccant air dryers are specifically designed for applications where clean dry air is required for short-term mobile use, e.g. emergency service, stoppage, turnarounds, supplemental or temporary air supply, but are durable enough for long-term, permanent use, as well.

Get a Quote on Desiccant Air Dryers

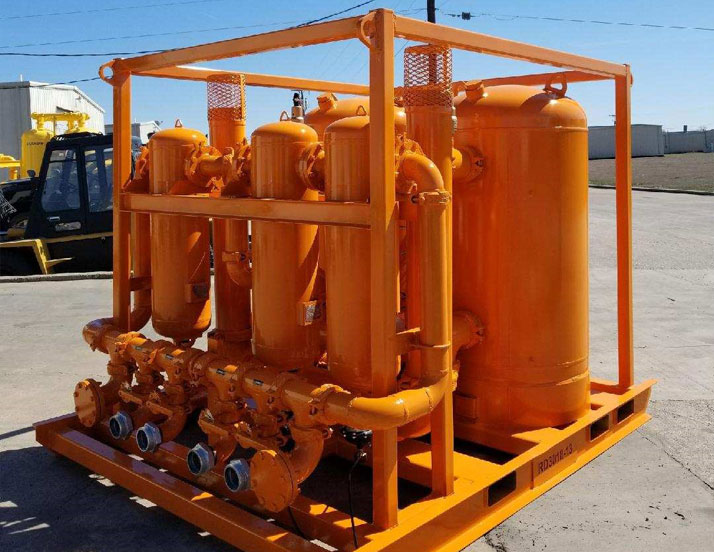

RD3000 Desiccant Air Dryer

Product Features

  • Heavy-duty design made for indoor and outdoor installations
  • Rugged design for rental fleet market
  • Skid mounted, conveniently portable for field applications
  • Provides instrument quality air
  • Special paint coating for extreme outdoor and coastal environments
  • Forklift holes and lifting lugs for easy transportation
  • Fabricated with dimensions to fit on trucks and in ISO (conex) containers
  • Romar ALL STEEL Silencer
  • Adjustable flow requirements
  • Adjustable pressure dew point
  • NEMA 4X , 115/1/60 electrics – suitable for outdoor operation
  • Single point electrical connection via cord set (less than 2 amps)
  • Hour meter
  • Easy installation—Plug and play

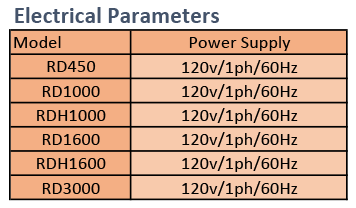

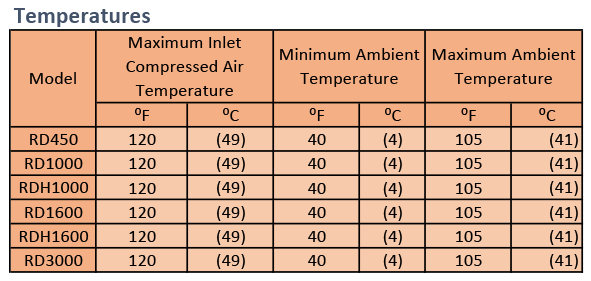

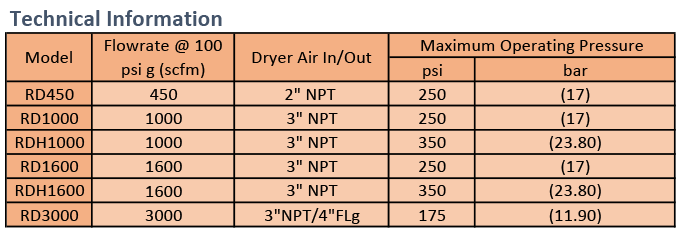

Romar Desiccant Air Dryers - Technical Information

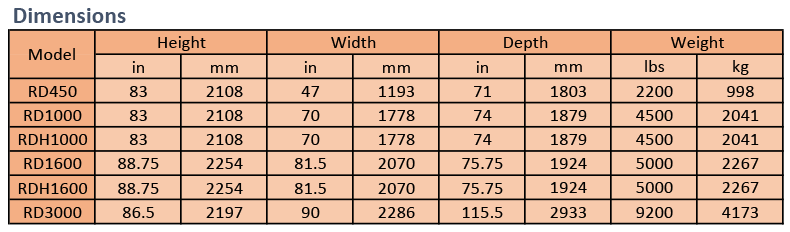

Romar Desiccant Air Dryers - Dimensions

Romar Desiccant Air Dryers

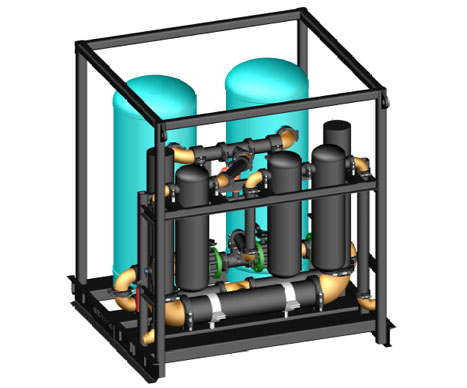

Model RD1600 – Desiccant Air Dryer

What’s Inside

Aftercooler (Optional):

Aftercoolers reduce the temperature of hot saturated compressed air leaving the compressor to drop out moisture and lower the temperature of air going into dryer.

Specifications:

  • Air cooled design
  • Operates with use of pneumatic motor
  • Aluminium construction for cooler, powder coated shroud, polypropylene fan blades
  • Maximum design ratings of 250 psig at 250°F

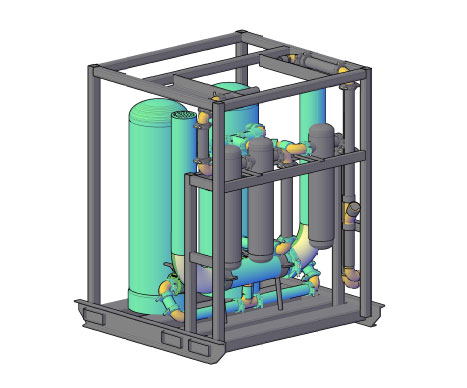

RD1000 Desiccant Air Dryer with Aftercooler Option Supports

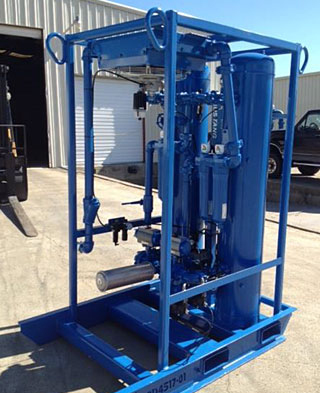

RD450 Desiccant Dryer with Aftercooler Option

RD450 Desiccant Dryer with
Aftercooler Option

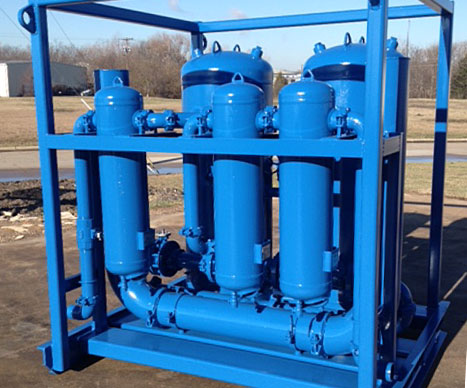

RD1600 Desiccant Air Dryer

RD1600

Filtration:

Three levels of filtration to meet compressed air quality standards.

  • Water Separator: specially designed for the efficient removal of bulk liquid contamination from compressed air*
  • Coarse Pre-filter: 1.0μ to remove moisture and oil*
  • Fine Pre-filter: .01micron to remove moisture and oil, protects dryer desiccant from contamination*
  • After-filter: 1.0 micron, removes particulates, protects downstream equipment.
    *use float drain

Basic Controller Features:

  • Nema 4X enclosure
  • LCD user interface
  • Four line digital display features
    1) Tower drying cycle
    2) Tower regenerating indication
    3) Run status
    4) Time remaining in cycle
  • Selectable cycle settings
  • Power ON/OFF switch

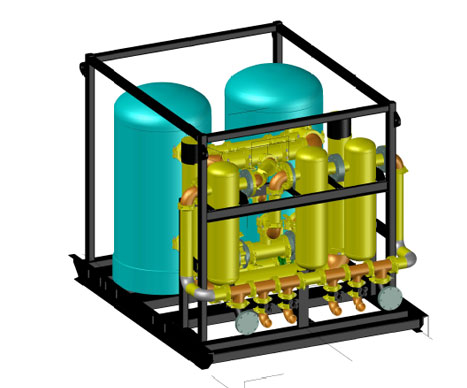

RD3000 Desiccant Air Dryer

The Portable Romar RD Series Desiccant Air Dryer offers air quality solutions for these and many other industries.

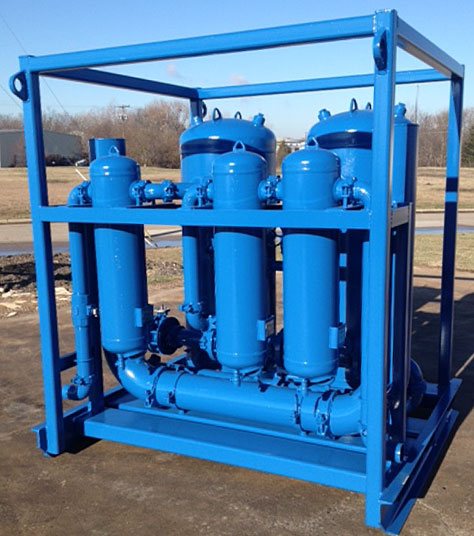

RD1600 Desiccant Air Dryer

  • Construction
  • Power Generation
  • Chemical
  • Petroleum
  • Oil & Gas
  • Automotive
  • Aerospace
  • Food & Beverage
  • Electronics
  • Pulp and Paper
  • Steel Producers
  • Off-Shore Oil Production
  • Pharmaceutical
  • Pipeline
  • Equipment Rental
